Interface Builder Guide

The Stellify Interface Builder allows you to author HTML visually without drag-and-drop. You construct your interface by adding, configuring, and nesting HTML elements.

Video Tutorial

Watch the complete walkthrough: Interface Builder Tutorial

Core Concept

Important: The Interface Builder is not a drag-and-drop builder. Instead, you:

Add HTML elements to a page
Configure their properties and attributes
Nest elements to create structure
See a live preview of your HTML

Think of it as "authoring HTML visually" rather than "dragging widgets around."

Getting Started

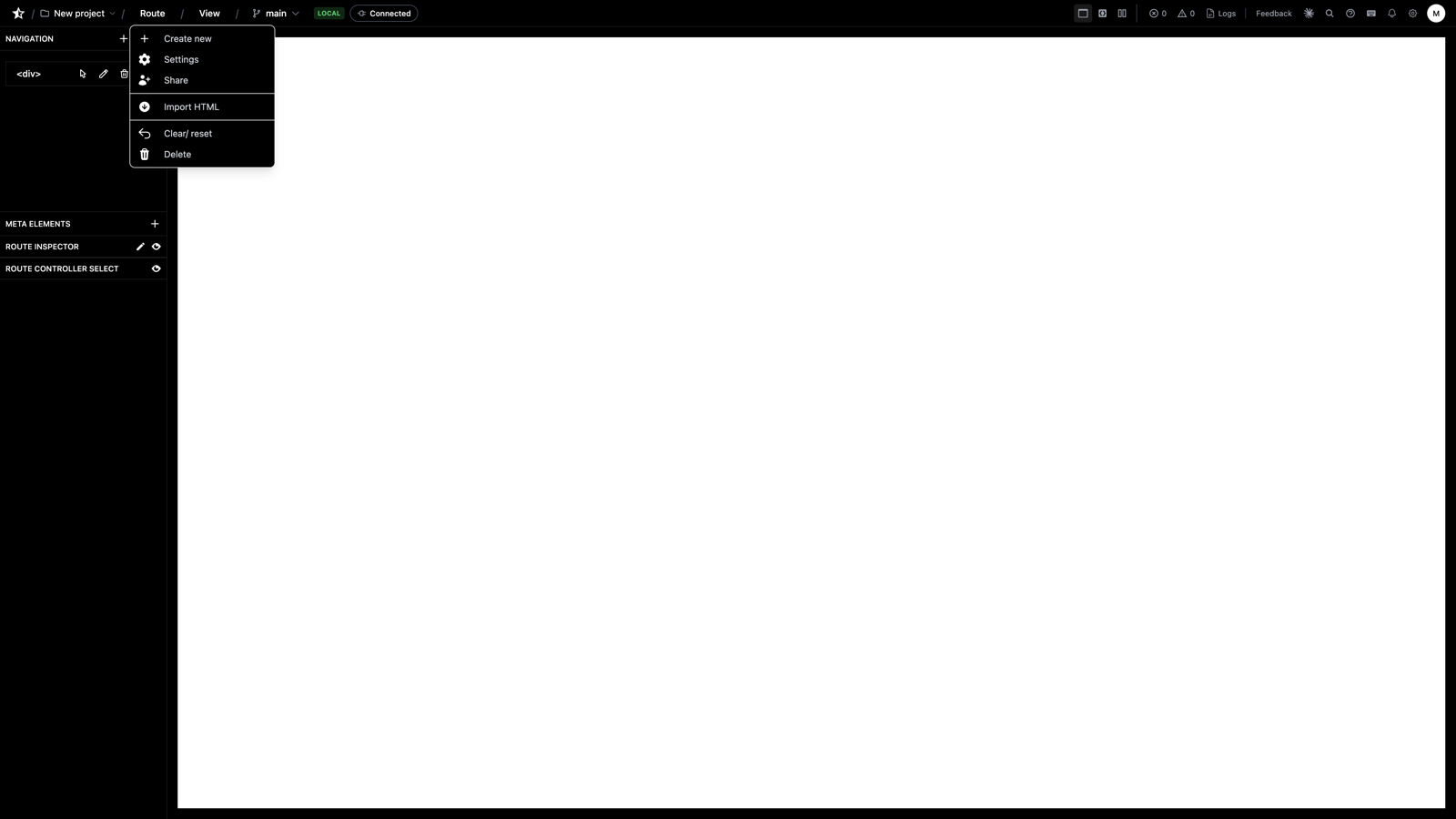

Creating a New Page

Navigate to Routes in your project
Click New Route
Enter the route path (e.g., /dashboard, /users/create)
Choose the HTTP method (GET, POST, etc.)
Click Create

Your new page opens in the Interface Builder.

The Interface Builder Layout

┌─────────────────────────────────────────────────────┐
│  Toolbar (Add Element, Save, Preview, Export)       │
├──────────────┬────────────────────┬─────────────────┤
│              │                    │                 │
│  Element     │   Canvas           │  Properties     │
│  Tree        │   (Live Preview)   │  Panel          │
│              │                    │                 │
│  - Body      │   Your page        │  Tag: div       │
│    - Header  │   renders here     │  Classes: []    │
│    - Main    │                    │  ID: header     │
│    - Footer  │                    │  Attributes     │
│              │                    │                 │
└──────────────┴────────────────────┴─────────────────┘

Working with Elements

Adding Elements

Select a parent element in the tree (or the page body)
Click Add Element button
Choose element type:
- s-wrapper - Container (div)
- s-text - Text content
- s-image - Image tag
- s-link - Hyperlink (anchor)
- s-form - Form element
- s-input - Input field
- s-button - Button
The element appears nested under your selection

Configuring Elements

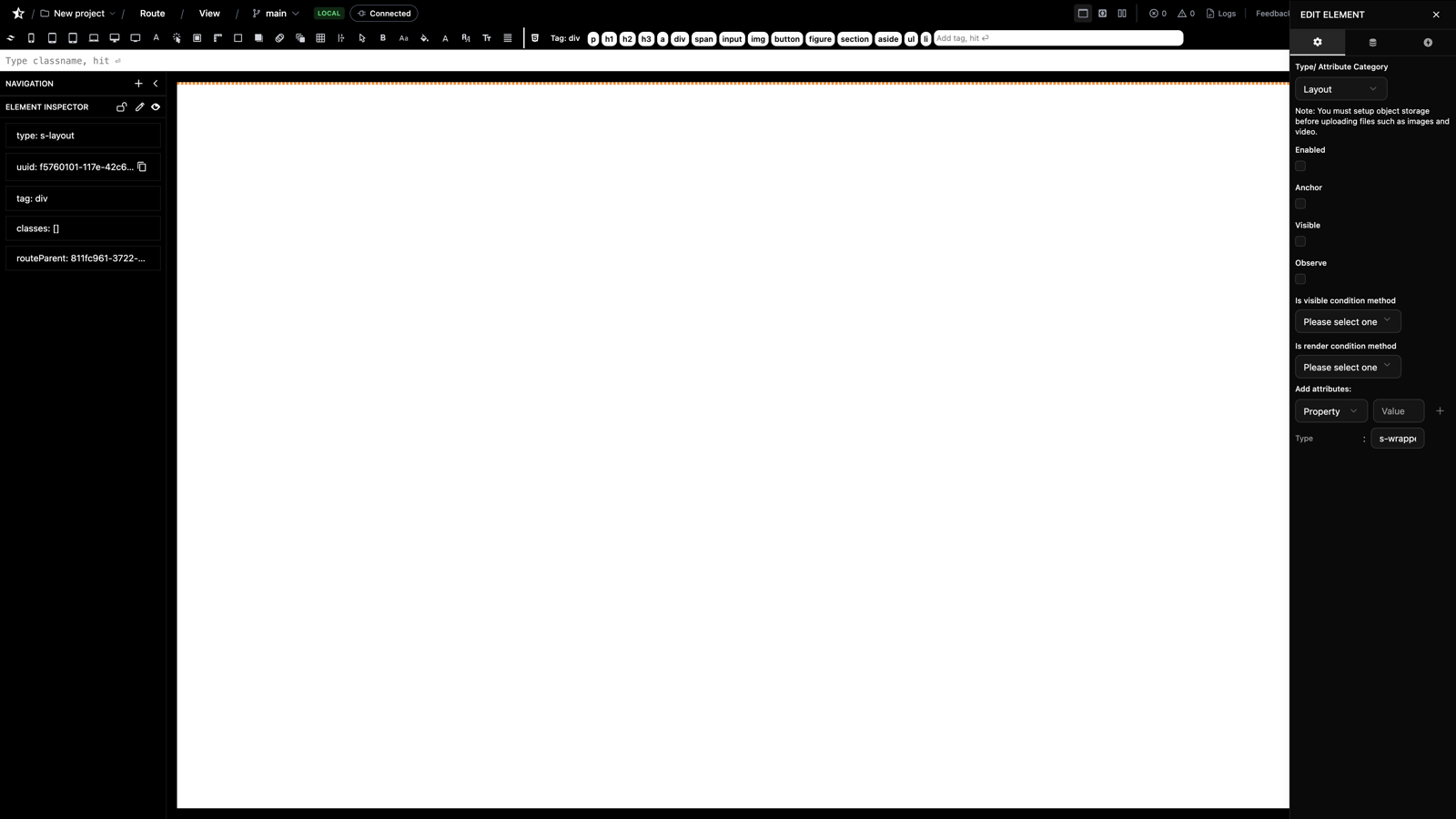

When you select an element, the Properties Panel shows:

Basic Properties

Tag - HTML tag name (div, span, section, article, etc.)
Name - Internal identifier (optional)
Type - Element type classification

Styling

Classes - CSS classes (array)
- Click + Add Class to add Tailwind/custom classes
- Example: container, mx-auto, p-4
Inline Styles - Direct CSS styles (use sparingly)
- Key-value pairs
- Example: color: red, font-size: 16px

Attributes

ID - Element ID attribute
Data Attributes - data-* attributes
ARIA Labels - Accessibility attributes
Custom Attributes - Any HTML attribute

Content (for text elements)

Text - The actual content to display
HTML - Raw HTML content (advanced)

Nesting Elements

Create structure by nesting elements:

Body
└── s-wrapper (tag: header)
    └── s-wrapper (tag: nav)
        ├── s-link (href: "/")
        │   └── s-text "Home"
        ├── s-link (href: "/about")
        │   └── s-text "About"
        └── s-link (href: "/contact")
            └── s-text "Contact"

This creates:

<header>
  <nav>
    <a href="/">Home</a>
    <a href="/about">About</a>
    <a href="/contact">Contact</a>
  </nav>
</header>

Moving Elements

To move an element:

Select the element in the tree
Click Move button
Select new parent
Choose position (before, after, inside)

Or use the Move Element API endpoint.

Deleting Elements

Select the element
Click Delete button
Confirm deletion

Note: Deleting a parent deletes all its children.

Element Types Explained

s-wrapper

Generic container element. Default tag is div, but can be changed to any HTML tag.

Common uses:

Layout containers
Semantic HTML (header, footer, section, article)
Grouping elements

Example:

{
  "type": "s-wrapper",
  "tag": "section",
  "classes": ["container", "mx-auto", "py-8"]
}

s-text

Text content element. Used for headings, paragraphs, spans, etc.

Properties:

text - The content to display
tag - h1, h2, p, span, etc.

Example:

{
  "type": "s-text",
  "tag": "h1",
  "text": "Welcome to Stellify",
  "classes": ["text-4xl", "font-bold"]
}

s-image

Image element.

Required attributes:

src - Image URL
alt - Alt text (accessibility)

Example:

{
  "type": "s-image",
  "tag": "img",
  "attributes": {
    "src": "/images/logo.png",
    "alt": "Stellify Logo"
  },
  "classes": ["w-32", "h-32"]
}

s-link

Hyperlink element.

Required attributes:

href - Link destination

Example:

{
  "type": "s-link",
  "tag": "a",
  "attributes": {
    "href": "/dashboard"
  },
  "classes": ["text-blue-600", "hover:underline"]
}

s-form

Form element with inputs.

Attributes:

action - Form submission URL
method - GET or POST

Example structure:

s-form (action: "/users", method: "POST")
├── s-input (name: "name", type: "text")
├── s-input (name: "email", type: "email")
└── s-button (type: "submit")
    └── s-text "Create User"

s-input

Form input field.

Attributes:

name - Field name
type - text, email, password, number, etc.
placeholder - Placeholder text
required - Boolean

Example:

{
  "type": "s-input",
  "tag": "input",
  "attributes": {
    "name": "email",
    "type": "email",
    "placeholder": "Enter your email",
    "required": true
  }
}

s-button

Button element.

Attributes:

type - submit, button, reset

Example:

{
  "type": "s-button",
  "tag": "button",
  "attributes": {
    "type": "submit"
  },
  "classes": ["bg-blue-500", "text-white", "px-4", "py-2"]
}

Building Common Patterns

Navigation Bar

s-wrapper (tag: nav, classes: ["bg-gray-800", "text-white"])
└── s-wrapper (classes: ["container", "mx-auto", "flex", "justify-between"])
    ├── s-link (href: "/")
    │   └── s-text "Logo"
    └── s-wrapper (classes: ["flex", "gap-4"])
        ├── s-link (href: "/dashboard") → s-text "Dashboard"
        ├── s-link (href: "/settings") → s-text "Settings"
        └── s-link (href: "/logout") → s-text "Logout"

Card Component

s-wrapper (classes: ["bg-white", "rounded-lg", "shadow-md", "p-6"])
├── s-text (tag: h2, text: "Card Title", classes: ["text-2xl", "font-bold"])
├── s-text (tag: p, text: "Card description...", classes: ["text-gray-600"])
└── s-button → s-text "Read More"

Form with Validation

s-form (action: "/users", method: "POST")
├── s-wrapper (classes: ["mb-4"])
│   ├── s-text (tag: label, text: "Name")
│   └── s-input (name: "name", required: true)
├── s-wrapper (classes: ["mb-4"])
│   ├── s-text (tag: label, text: "Email")
│   └── s-input (name: "email", type: "email", required: true)
└── s-button (type: "submit") → s-text "Submit"

Using Tailwind CSS

Stellify supports Tailwind CSS classes out of the box.

Common Utility Classes

Layout:

container, mx-auto - Centered container
flex, grid - Flexbox/Grid layouts
p-4, m-4 - Padding/Margin
w-full, h-screen - Width/Height

Typography:

text-xl, text-2xl - Font sizes
font-bold, font-semibold - Font weights
text-center, text-left - Text alignment

Colors:

bg-blue-500, text-white - Background/Text colors
hover:bg-blue-600 - Hover states
border-gray-300 - Border colors

Spacing:

space-y-4 - Vertical spacing between children
gap-4 - Gap in flex/grid
px-4, py-2 - Padding horizontal/vertical

Responsive Design

Use responsive prefixes:

classes: [
  "w-full",           // Full width on mobile
  "md:w-1/2",         // Half width on tablet
  "lg:w-1/3"          // Third width on desktop
]

Dynamic Content

Binding Data to Elements

Elements can be connected to backend data using statements.

Create an element (e.g., s-text)
In Properties, add Statement binding
Link to a backend method that returns data
The element will render with dynamic content

Example:

Element: s-text (tag: span)
Statement: Links to UserController@getName
Result: Displays current user's name

Loops (Repeating Elements)

To display lists:

Create parent s-wrapper
Add loop statement
Nest template elements
Elements repeat for each data item

Example structure:

s-wrapper (loop statement: "users")
└── s-wrapper (classes: ["user-card"])
    ├── s-text → {{ user.name }}
    ├── s-text → {{ user.email }}
    └── s-button → "View Profile"

This repeats the card for each user in the collection.

Live Preview

The Canvas shows real-time HTML rendering:

Add element → See it appear
Change classes → See styles update
Edit text → See content change

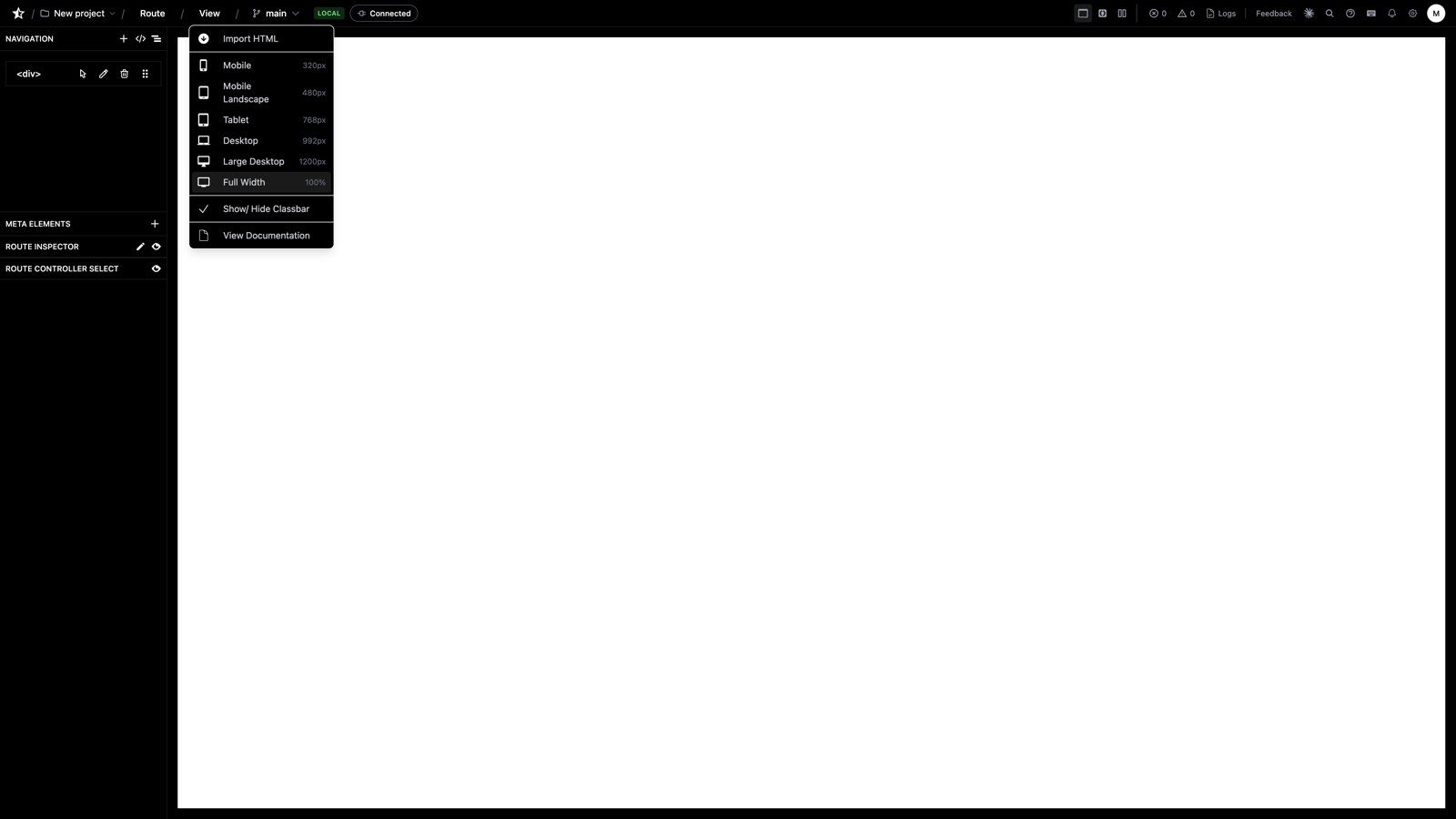

Preview modes:

Desktop (default)
Tablet
Mobile

Toggle between viewports to test responsive design.

Keyboard Shortcuts

| Shortcut | Action | |----------|--------| | Ctrl/Cmd + S | Save page | | Ctrl/Cmd + Z | Undo | | Ctrl/Cmd + Y | Redo | | Delete | Delete selected element | | Ctrl/Cmd + D | Duplicate element | | Arrow Up/Down | Navigate element tree |

Exporting HTML

To get the generated HTML:

Click Export button
Choose format:
- Blade Template - Laravel Blade syntax
- HTML - Plain HTML
- Component - Reusable component
Copy or download the file

The exported file includes all elements with proper nesting and attributes.

Best Practices

Structure

Use semantic HTML - Change tags to header, nav, section, article, footer
Keep nesting logical - Mirror how you'd write HTML manually
Name important elements - Makes tree navigation easier

Styling

Prefer utility classes - Use Tailwind instead of inline styles
Create reusable patterns - Use duplicate for common structures
Test responsive - Check mobile, tablet, desktop views

Performance

Avoid deep nesting - Keep structure reasonably flat
Use components - Reuse patterns instead of rebuilding
Optimize images - Use appropriate sizes and formats

Accessibility

Add alt text - Always include for images
Use semantic tags - Helps screen readers
Include ARIA labels - For interactive elements
Ensure keyboard navigation - Tab order should be logical

Troubleshooting

Element not appearing?

Check parent element is visible
Verify classes aren't hiding it (e.g., hidden)
Ensure text content exists for text elements

Styling not working?

Check class names are spelled correctly
Verify Tailwind classes are valid
Check for conflicting styles
Use browser inspector to debug

Can't move/delete element?

Check if element is locked
Verify permissions
Try refreshing the builder

Advanced Features

Custom Components

Create reusable components:

Build element structure
Click Save as Component
Name your component
Reuse across pages

Element Locking

Lock elements to prevent accidental changes:

Select element
Toggle Locked property
Element becomes read-only

Version History

View and restore previous versions:

Click History button
Browse commits (if subscribed)
Restore to any previous state

Next Steps

Learn about Code Editor to add backend logic
Read Configuration Guide to set up services
Explore Exporting Code to deploy your app

Need help? Watch the video tutorial or check the API documentation.
